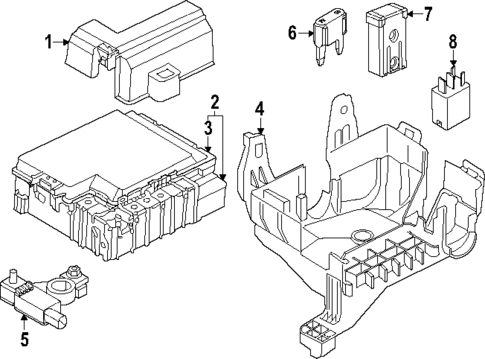

Fuse & Relay for 2024 Ford F-150 Lightning
No.
Part # / Description / Price
Price
2
MSRP $696.67
$459.80
3
Fuse Box Cover
Ford
Ford Notes: PARTS: Part included with fuse box.
Description: From 10/14/2019. Engine compartment, 2021-23.
$25.45
$25.45
4
MSRP $52.73
$31.90
6
Motorcraft™ Multi-Purpose Fuse Ford
Ford Description: Engine compartment, auxiliary relay box, 5 amp. 5 amp 2 terminal. Slot style 5 amp. 5 amp-32 volt. Body control module. 2 blade 5 amp. 2021-23 engine compartment. 5 amp. Engine compartment with 2.7L turbo. micro 2 5 amp.
$1.27
$1.27
6
Motorcraft™ Multi-Purpose Fuse Ford
Ford Description: 7.5 amp 2 terminal. Body control module. 2 blade 7.5 amp. Fuse and relays, 2 blade-7.5 amp. Engine compartment. 7.5 amp.
$1.59
$1.59
6
Motorcraft™ Multi-Purpose Fuse Ford
Ford Description: Engine compartment. 2 blade type, 32 volt 26 amp. Engine compartment, auxiliary relay box, 25 amp. Fuse and relays, 2 blade-25 amp. 25 amp 2 terminal. Engine compartment. 32 volt-type 1 25 amp. Engine compartment. 2 blade type, 32 volt 25 amp. 2021-23 engine compartment. 25 amp.
$1.27
$1.27
6
Fuse Ford
Ford Description: 5 amp 2 terminal. Slot style, 5 amp. 5 amp-32 volt. Engine compartment, 2021-23, 5 amp. Instrument panel, 5 amp. Engine compartment, with 2.7L turbo, micro 2, 5 amp. 2 blade-5 amp.
$1.27
$1.27
6
Multi-Purpose Fuse Ford
Ford Description: 7.5 amp 2 terminal. Instrument panel, 7.5 amp. Engine compartment, with 2.7L turbo, micro 2, 7.5 amp. 2 blade-7.5 amp.
$1.59
$1.59
6
Mini Fuse Ford
Ford Description: 10 amp 2 terminal. Slot style, 10 amp. Engine compartment. rectangular 10 amp. Engine compartment, 2021-23, 10 amp. Instrument panel, 10 amp. Engine compartment, with 2.7L turbo, micro 2, 10 amp. 2 blade-10 amp.
$1.58
$1.58
6
Multi-Purpose Fuse Ford
Ford Description: 15 amp 2 terminal. Slot style, 15 amp. ENGINE COMPARTMENT. rectangular 15 amp, blue. Engine compartment, 2021-23, 15 amp. Engine compartment, with 2.7L turbo, micro 2, 15 amp. 2 blade-15 amp.
$1.91
$1.91
6
Mini Fuse Ford
Ford Description: 20 amp 2 terminal. Slot style, 20 amp. ENGINE COMPARTMENT. rectangular 20 amp, yellow. Engine compartment, 2021-23, 20 amp. Instrument panel, 20 amp. Engine compartment, with 2.7L turbo, micro 2, 20 amp. 2 blade-20 amp.
$2.55
$2.55
6
Mini Fuse Ford
Ford Description: ENGINE COMPARTMENT. rectangular 30 amp, green. Engine compartment, 2021-23, 30 amp. Instrument panel, 30 amp. Engine compartment, with 2.7L turbo, micro 2, 30 amp. 2 blade-30 amp.
$1.27
$1.27
6
Fuse Ford
Ford Description: Body control module, 2 blade, 25 amp. Engine compartment, 2 blade type, 32 volt, 26 amp. 25 amp 2 terminal. Engine compartment, 2021-23, 25 amp. Engine compartment. 2-blade 25 amp. Fuse and relays. 2 blade-25 amp.
$1.27
$1.27
7
Maxi Fuse Ford
Ford Description: Battery junction, 60 amp. Engine compartment, cartridge type, 32 volt, 60 amp. 60 amp-yellow. Engine compartment, square, 60 amp. Fuse and relays. 60 amp.
$12.73
$12.73
7
Circuit Breaker Ford
Ford Description: Engine compartment, type 1, 50 amp. High voltage. 50 amp. Square type, 50 amp. 50 amp 58 volt. Engine compartment, rectangular, 50 amp. Engine compartment, with 2.7L turbo, low profile jcase, 50 amp. 2009-14 passenger compartment. square 50 amp. Square type 50amp. 2015-19 engine compartment. square 50 amp.
$6.46
$6.46
7
Circuit Breaker Ford
Ford Description: Engine compartment, type 1, 60 amp. High voltage. 60 amp. Engine compartment, cartridge type, 58 volt, 60 amp. Fuse and relays, 58 volt, 60 amp. Square type, 60 amp. Engine compartment, rectangular, 60 amp. Engine compartment, with 2.7L turbo, low profile jcase, 60 amp. 2009-14 passenger compartment. square 60 amp. 2015-19 engine compartment. square 60 amp.
$2.55
$2.55
7
Maxi Fuse Ford
Ford Description: Battery junction, 40 amp. Engine compartment, cartridge type, 32 volt, 40 amp. 40 amp-green. Engine compartment, square, 40 amp. Instrument panel, 40 amp. Fuse and relays. 40 amp.
$12.73
$12.73
7
Maxi Fuse Ford
Ford Description: Battery junction, 15 amp. Engine compartment, cartridge type, 32 volt, 15 amp. 15 amp-gray. Engine compartment, square, 15 amp. Instrument panel, 15 amp. Fuse and relays. 15 amp.
$2.55
$2.55
7
Maxi Fuse Ford
Ford Description: Battery junction, 20 amp. Engine compartment, cartridge type, 32 volt, 20 amp. 20 amp-blue. Engine compartment, square, 20 amp. Instrument panel, 20 amp. Fuse and relays. 20 amp.
$2.55
$2.55
7
Maxi Fuse Ford
Ford Description: Battery junction, 25 amp. Engine compartment, 25 amp. Fuse and relays. 25 amp.
$2.55
$2.55
7
Motorcraft™ Circuit Breaker Ford
Ford Description: High voltage, 60 amp. Passenger compartment, square, 60 amp. Fuse and relays. 58 volt 60 amp. Square type, 60 amp. ENGINE COMPARTMENT. cartridge type, 58 volt 60 amp. 2021-25 engine compartment. square 60 amp. Engine compartment. rectangular 60 amp. Engine compartment, with 2.7L turbo, low profile jcase, 60 amp.
$2.55
$2.55
7
Motorcraft™ Circuit Breaker Ford
Ford Description: Square type, 50amp. High voltage, 50 amp. Engine compartment, 2015-19, square, 50 amp. Square type, 50 amp. 2021-25 engine compartment. square 50 amp. 50 amp 58 volt. Passenger compartment, square, 50 amp. Engine compartment. rectangular 50 amp. Engine compartment, with 2.7L turbo, low profile jcase, 50 amp.
$6.46
$6.46
7
Maxi Fuse Ford
Ford Description: Battery junction, 30 amp. Engine compartment, cartridge type, 32 volt, 30 amp. 30 amp-pink. Engine compartment, square, 30 amp. Fuse and relays. 30 amp.
$3.82
$3.82
7
Maxi Fuse Ford
Ford Description: Battery junction, 50 amp. Engine compartment, cartridge type, 32 volt, 50 amp. Engine compartment, square, 50 amp. Instrument panel, 50 amp. Fuse and relays. 50 amp.
$2.55
$2.55
8
MSRP $66.67
$44.00

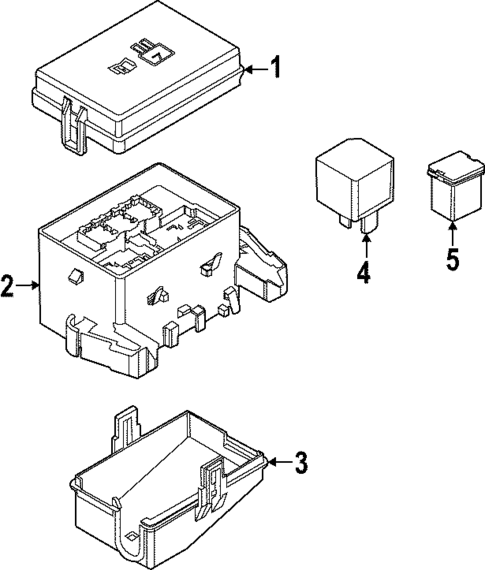

No.
Part # / Description / Price
Price
3
$6.82
4
Motorcraft™ Accessory Power Relay Ford
Ford Description: High voltage. Engine compartment, 20 amp-5 terminal. 70 amp-4 terminal. 4 blade-70 amp.
MSRP $35.09
$21.23
MSRP $35.09
$21.23
4
Accessory Power Relay Ford
Ford Description: High voltage. Engine compartment, 20 amp-5 terminal. 70 amp-4 terminal. Engine compartment-type 2. 70 amp-4 blade. Passenger compartment. 70 amp-4 blade.
MSRP $35.09
$21.23
MSRP $35.09
$21.23
5
Circuit Breaker Ford
Ford Description: Square, 25 amp, 58 volt. Engine compartment, 58 volt, 25 amp. High voltage. 25amp. Engine compartment, rectangular, 25 amp. Engine compartment, with 2.7L turbo, low profile jcase, 25 amp. 2009-14 passenger compartment. square 25 amp. Square type 25 amp. 2015-19 engine compartment. square 25 amp.
$6.91
$6.91
5
Circuit Breaker Ford
Ford Description: Engine compartment, 58 volt, 20 amp. High voltage. 20 amp. Engine compartment, rectangular, 20 amp. 2009-14 passenger compartment. square 20 amp. Square type 20 amp. 2015-19 engine compartment. square 20 amp.
$8.29
$8.29
5
Motorcraft™ Circuit Breaker Ford
Ford Description: High voltage, 60 amp. Passenger compartment, square, 60 amp. Fuse and relays. 58 volt 60 amp. Square type, 60 amp. ENGINE COMPARTMENT. cartridge type, 58 volt 60 amp. 2021-25 engine compartment. square 60 amp. Engine compartment. rectangular 60 amp. Engine compartment, with 2.7L turbo, low profile jcase, 60 amp.
$2.55
$2.55
5
Circuit Breaker Ford
Ford Description: High voltage. 30 amp. Fuse and relays, 58 volt, 30 amp. Engine compartment, rectangular, 30 amp. Engine compartment, with 2.7L turbo, low profile jcase, 30 amp. 2009-14 passenger compartment. square 30 amp. Square type 30 amp. 2015-19 engine compartment. square 30 amp.
$6.80
$6.80
5
Circuit Breaker Ford
Ford Description: Engine compartment, type 1, 40 amp. High voltage. 40 amp. Fuse and relays, 58 volt, 40 amp. Engine compartment, rectangular, 40 amp. Engine compartment, with 2.7L turbo, low profile jcase, 40 amp. 2009-14 passenger compartment. square 40 amp. Square type 40 amp. 2015-19 engine compartment. square 40 amp.
$6.46
$6.46
5
Circuit Breaker Ford
Ford Description: Engine compartment, type 1, 50 amp. High voltage. 50 amp. Square type, 50 amp. 50 amp 58 volt. Engine compartment, rectangular, 50 amp. Engine compartment, with 2.7L turbo, low profile jcase, 50 amp. 2009-14 passenger compartment. square 50 amp. Square type 50amp. 2015-19 engine compartment. square 50 amp.
$6.46
$6.46
5
Circuit Breaker Ford
Ford Description: Engine compartment, type 1, 60 amp. High voltage. 60 amp. Engine compartment, cartridge type, 58 volt, 60 amp. Fuse and relays, 58 volt, 60 amp. Square type, 60 amp. Engine compartment, rectangular, 60 amp. Engine compartment, with 2.7L turbo, low profile jcase, 60 amp. 2009-14 passenger compartment. square 60 amp. 2015-19 engine compartment. square 60 amp.
$2.55
$2.55
5
Motorcraft™ Circuit Breaker Ford
Ford Description: Square type, 25 amp. Square 25 amp, 58 volt. Engine compartment. 58 volt 25 amp. High voltage, 25amp. Passenger compartment, square, 25 amp. 2021-25 engine compartment. square 25 amp. Engine compartment. rectangular 25 amp. Engine compartment, with 2.7L turbo, low profile jcase, 25 amp.
$6.91
$6.91
5
Motorcraft™ Circuit Breaker Ford
Ford Description: High voltage, 40 amp. Engine compartment. type 1 40 amp. Engine compartment, 2015-19, square, 40 amp. Fuse and relays. 58 volt 40 amp. 2021-25 engine compartment. square 40 amp. Passenger compartment, square, 40 amp. Engine compartment. rectangular 40 amp. Engine compartment, with 2.7L turbo, low profile jcase, 40 amp.
$6.46
$6.46
5
Motorcraft™ Circuit Breaker Ford
Ford Description: Square type, 50amp. High voltage, 50 amp. Engine compartment, 2015-19, square, 50 amp. Square type, 50 amp. 2021-25 engine compartment. square 50 amp. 50 amp 58 volt. Passenger compartment, square, 50 amp. Engine compartment. rectangular 50 amp. Engine compartment, with 2.7L turbo, low profile jcase, 50 amp.
$6.46
$6.46
